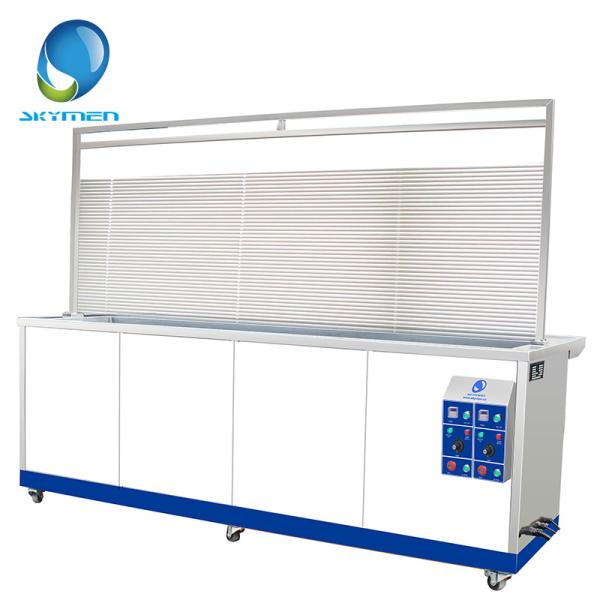

Movable Venetian Window Blind Ultrasonic Cleaners with Water Rinsing Tank

Skymen Technology Corporation Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Movable Venetian Window Blind Ultrasonic Cleaners with Water Rinsing Tank

  • 1
  • 2

Brand Name : Skymen

Model Number : JP-2072T

Certification : CE

Place of Origin : Guangdong , China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 units per month

Delivery Time : In Stock

Packaging Details : 1set / wooden case

Price : Negotiation

Tank size : 3000x220x500mm, can be customized

Frequency : 28khz or 40khz to choose

Material : SUS304 or SUS316L to choose

Generator : separate control

Warranty : 1 year

Advantage : filteration system

Ultrasonic power : 3600W

Heating power : 12000W

Timer : 1~99min adjustable

heater : 20~80C adjustable

power adjustable : 40%-100%

Tank capacity : 330L

Power supply : 220V/380V,50/60Hz,3phase

Contact Now

Movable Venetian Window Blind Ultrasonic Cleaners with Water Rinsing Tank:

Brief introduction:

  1. Tank dimension and transducers are custom made available.
  2. Without damages to cleaning objects
  3. Oil filteration system is optional


Features:

  1. Adjustable ultrasonic power
  2. Original BLT type transducer
  3. SUS 316L stainless steel tank
  4. Adaptable for continuous operation
  5. Adjustable thermo controller
  6. Adjustable ultrasonic power
  7. With separate control ultrasonic electronic generator
  8. sweep mode control available
  9. digital timer & heating control
  10. boost mode& oil skimmer upon clients requirement
  11. pressure pump and filter system are available


Specification details:

Model: Skymen

Jp-120ST

JP-180ST

JP-240ST

JP-300ST

JP-360ST

JP-720ST

TANK'S WORKING DIMENSION (mm)

L1

355

406

500

500

500

1000

W1

305

305

355

406

460

600

H1

355

460

500

500

550

600

OVERALL DIMENSION (mm)

L2

535

586

680

710

710

1320

W2

485

485

535

586

640

780

H2

750

680

720

720

770

820

TANK'S TOTAL CAPACITY

38L

56L

88L

101L

126L

360L

TANK'S MATERIAL

SUS304 / SUS316L

IN-TANK SURFACE FINISHING

Hard-Cr Plating Treatment ( 20+ microns )

HOUSING'S MATERIAL

Stainless steel

ULTRASONIC FREQUENCY*

28kHz / 40kHz

ULTRASONIC TRANSDUCER

12

18

24

30

36

72

ULTRASONIC OUTPUT POWER (MAX.)

600W

900W

1200W

1500W

1800W


3600W

ELECTRONIC GENERATOR

KG600

KG900

KG1200

KG1500

KG1800

KG3600

Build-in

Separate

Functions:
Single tank ultrasonic cleaner equipment system includes transducer box and generator.
The transducer box and generator can be both build-in or separate but work together to do cleaning.
Transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank.
The number and placement of transducers is selected to give maximum results.
Specification of tank dimension and transducer boxes are custom made available.
Either for mould of parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.
Packing and shipping:

Packing , loading, delivery time

Packing unit

1set / wooden case

Packing method

Export wooden case

Loading port

Shenzhen

Delivery time

About 16 working days

Minimum Order Quantity

1set

Transport method

By express company / air / sea


Competitive Advantage:

1. Our factory Machines produced with good quality parts, and competitive price. Machine warranty is for One year, for all the machines itself quality problems which in normal use and under warranty, we’ll provide maintenance and provide machine parts free of charge.

2. For all our machines before delivery had passed Skymen Limited strict inspection, at least be testing 24-48 hours before delivery.

3. Provide ODM and OEM, Customers only need to told us the products which request for cleaning, and their detailed cleaning requirements, our engineers will provide them perfect solution free of charge. Also, clients own machine design and requirements all be OK.

4. After-sale service: To make sure our high quality and top service from us, before order will send the machine design drawing and specifications to clients for confirmation, before machine delivery we’ll testing the machines 24-48 hours and QC fully inspection, if there is any problem in Customer’s place, we’ll helping to checking out the problem and provide the machine parts for replace free of charge, if can’t to solve please return to us for a new one replace.

FAQ

1. How about after sales services?

1 Year warranty for Forall ultrasonic cleaner.

If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.

2. What are the advantages of ultrasound over traditional cleaning methods?

minimize the use of manual labor

make cleaning and degreasing without the use of organic solvents

clean hard to reach areas of products and remove all types of dirt

shorten the processes such as extraction, dispersion, purification, chemical reactions

eliminates costly mechanical and chemical cleaning of heat exchangers

3. What frequency is better for my parts?

Frequency is suggested based on pollutants in the objects.

28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. )

40kHz is better for pcb boards, electronic parts, etc.

Higher precision goods, higher frequency.

4. Can ultrasonic cleaning damage parts?

Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.

5. What cleaning solution should I use?

A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.

6. Is rinsing after cleaning cycles?

Rinsing is recommended to remove any chemical residue that could be harmful to the part. Details can be rinsed right in your ultrasonic cleaner or in a clean water bath or in a separate sink tap, distilled or deionized water.
